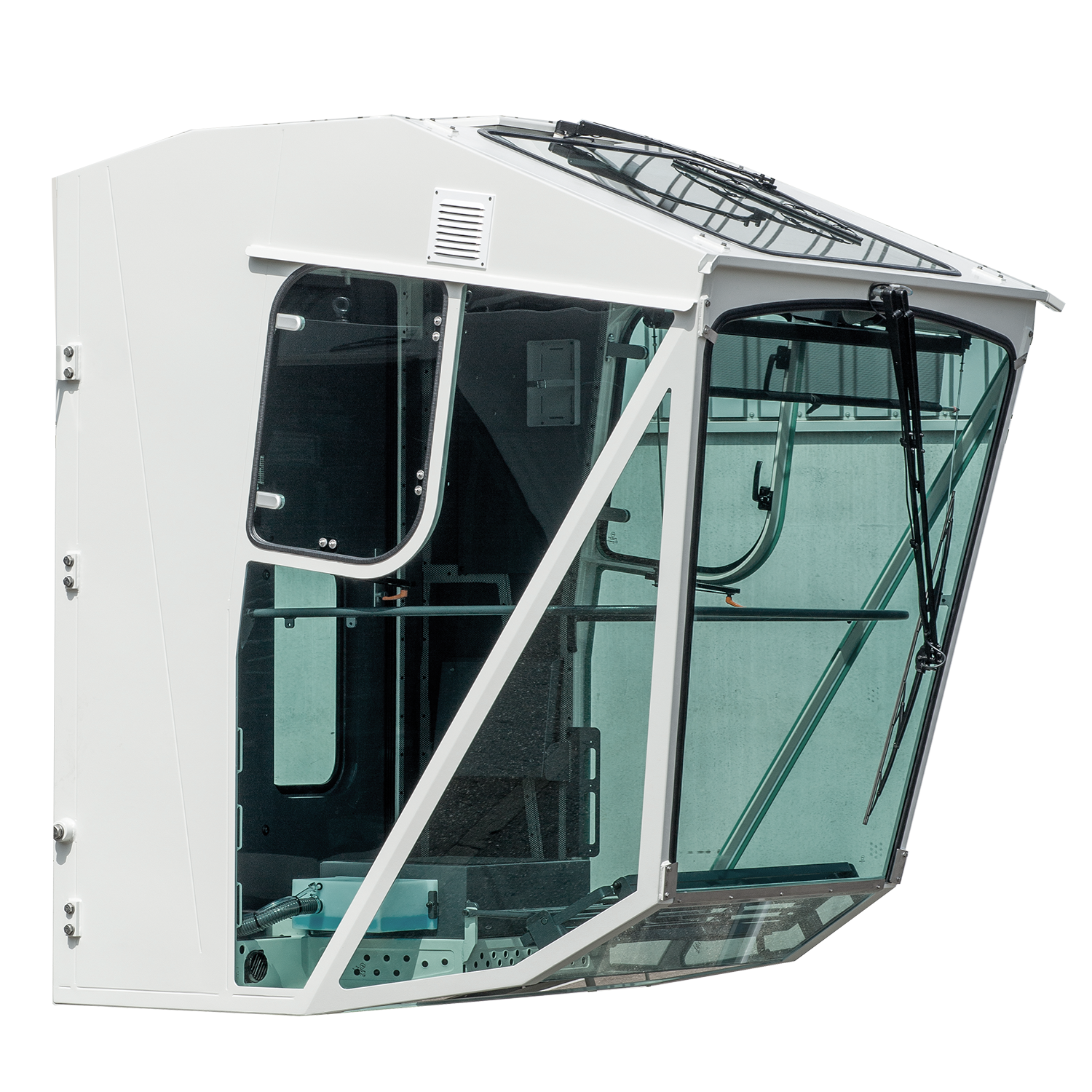

C3 Cabin

The C3 Cabin is reliable and robust for the most demanding tasks

High-performance mobile machine operations demand a cabin that balances performance and comfort.

The C3 Cabin is designed to meet these unique needs. Available in two sizes, it’s a versatile solution for a wide range of customer requirements and is compatible with any crane, ensuring optimal performance for every task.

Specification:

• Modular welded construction according to DIN EN ISO 3834-2 or DIN EN 1090-2 and DIN EN 1090-3
• Thermally insulated with material of low flammability in accordance with FMVSS 302, DIN 75 200
• Corrosion protection/painting up to C5M for ISO 12944
• Soundproofed
• Prepared for installation of control station
• Intermediate shelf for air and cable ducts
• Space for customer installations
• E-cabinet / social cabinet / filing systems
• Sun protection system
• Wiper and washer system
• Tinted windows (solar radiation and reflection reduction)
• Door hinge direction selectable
• Cab mounting selectable: floor mounting/roof mounting
• Cabin lighting
• Prepared for installation radio system
• Length: 2230 / 3300mm  |  Width: 1800 mm  |  Height: 2500 mm  |  Interior Height: 2225 mm
