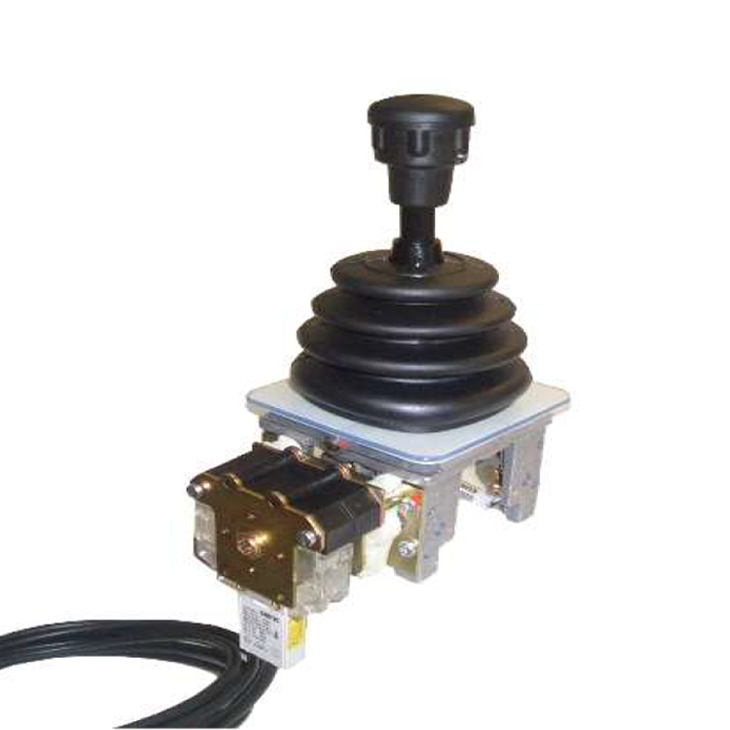

EXVNS0 Joystick

Our classic for potentially explosive areas.

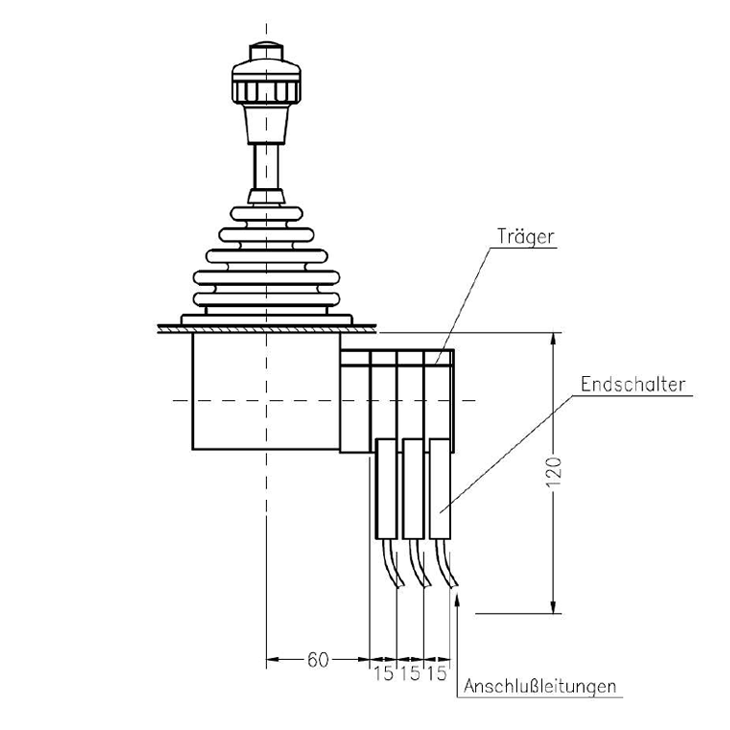

Designed for use in potentially explosive atmospheres. Contact blocks with certified Ex limit switches and/or Ex potentiometers are flange-mounted to the robust metal drive block. The Ex limit switches are installed in an empty double contact element housing and snapped onto a contact carrier of the contact block. For the installation of an Ex limit, an overall length (=15mm) is required in the contact block. Ex potentiometers are flanged to the end of the contact block via a special coupling. The connecting cables of the Ex limit switches and Ex potentiometers are cast into the respective housing and are available in 2 different lengths.

Typical applications – ATEX Environments
